$2,900.00

SKU: N/A Category:

Description

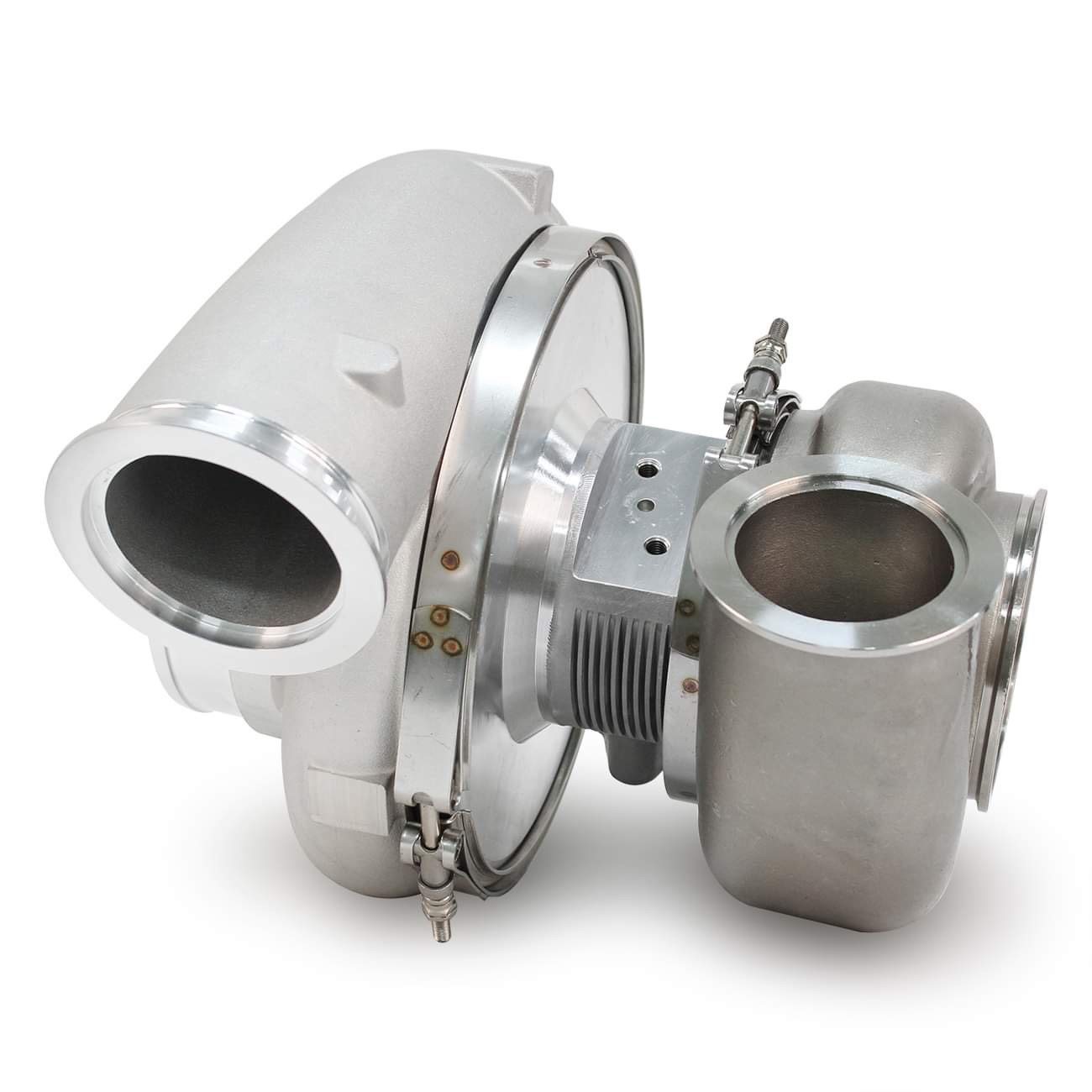

  • Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

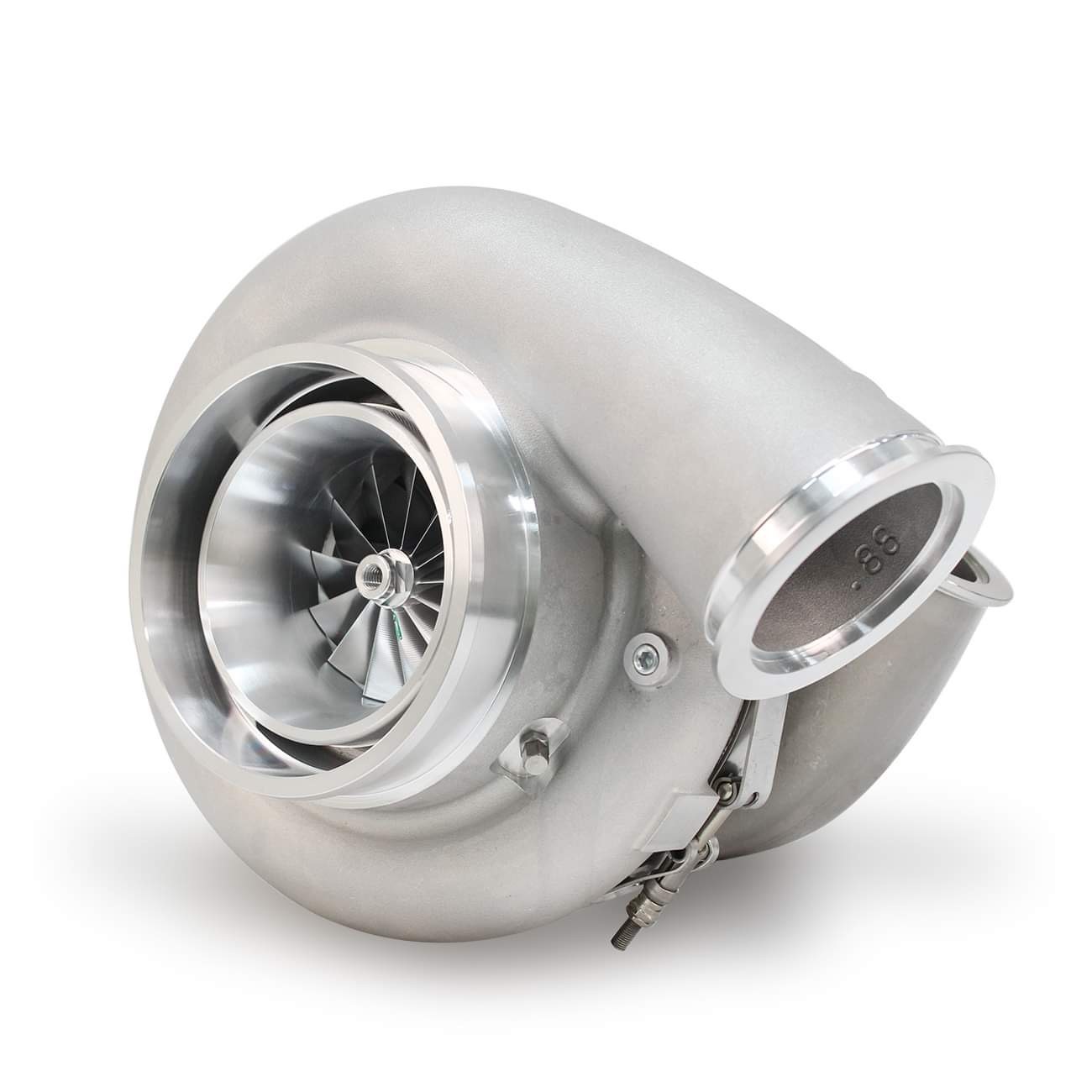

  • 13 Blade billet compressor wheel 88mm inducer and 120mm exducer produces up to 1900 hp

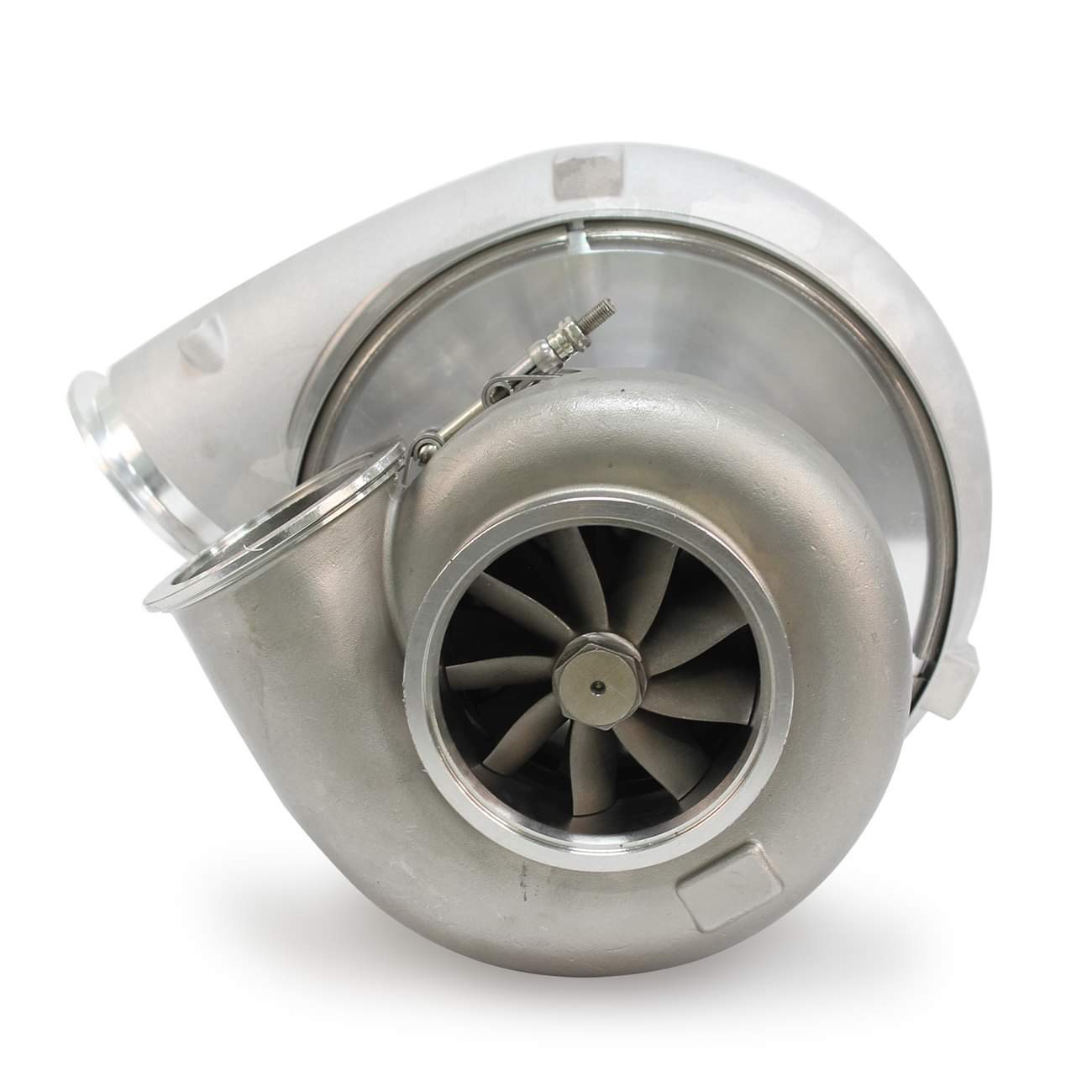

  • 9 Blade Inconel 713c turbine wheel with more turbine flow
  • Fin-cooled aluminum center housing, lighter weight
  • Anti-surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included
  • Oil Feed Fitting needs to be bought separately
  • Compressor Wheel: 88.5*120*127.93mm, 13 Blade
  • Turbine Wheel: 99*94mm
  • Compressor Inlet: 6” Hose
  • Compressor Outlet: 4” V-band
  • Compressor Housing A/R: 0.88
  • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
  • Turbine Outlet: 5” V-Band
  • Turbine Housing A/R: 1.31 Stainless dual V-Band
